Electric · Storage System
5 Year Tank
1 Year parts and labour
10 Year Tank
1 Year parts and labour
Compact size
Fast recovery
Able to be installed inside and outside
As this is a commercial system, it may use more
power that a standard electric storage system
Always use a licensed plumber when installing a hot water system.
Electric · Storage System
The Thermann Commercial 50L electric storage hot water system offers a compact, fast recovering solution for commercial applications with limited space. Combining three powerful 3.6kW elements, the Thermann Commercial 50L is able to balance mains pressure delivery, fast recovery & energy efficiency. This unit provides a great alternative to areas where reticulate gas is not available or internal fluing is not practical.

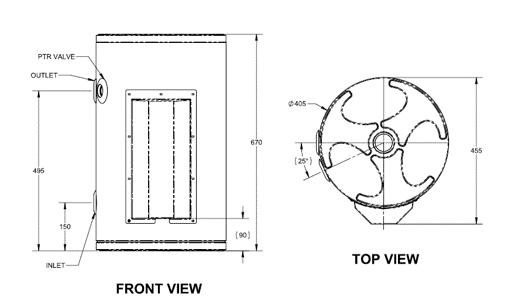

Model | Dimensions H x W x D (mm) |
---|---|
50L | H670 x D 455 |
Product Code | No. of Units In Series | Storage Capacity | Recovery Rate* | 1st Hour Delivery | 2nd Hour Delivery | 3rd Hour Delivery | 6th Hour Delivery |
---|---|---|---|---|---|---|---|
1307303 | 1 | 50L | 186L/Hr | 236L | 442L | 608L | 1166L |
2 | 100L | 372L/Hr | 472L | 844L | 1216L | 2332L |
* Recovery L/hr @ 50°C temperature rise.
Specifications | 50THMC336 |
---|---|
Storage Capacity (L) | 50 |
Hot Water Delivery (L) | 50 |
Net Weight Emplty (kg) | 23 |
Element Sizes (kW) | 3 x 3.6 |
Cable Entry Size (mm) | 25mm |
Electrical Connection (3 phase) | 415V AC |
Water Connections Female | 20mm (3/4") |
Relief Valve Pressure (kPa) | 1000 |
Max. Inlet Pressure (kPa) | 800 |
Max. Thermostat Setting | 75⁰C |
