Gas · Continuous Flow Hot Water Systems
Not designed for commercial use
12 Year Heat Exchanger
3 Years Parts and
Labour
1 Year Heat Exchanger
1 Year Parts and
Labour
Save space with a small footprint mounted on your
wall
They heat water as you need it, so you will never
run out of hot water

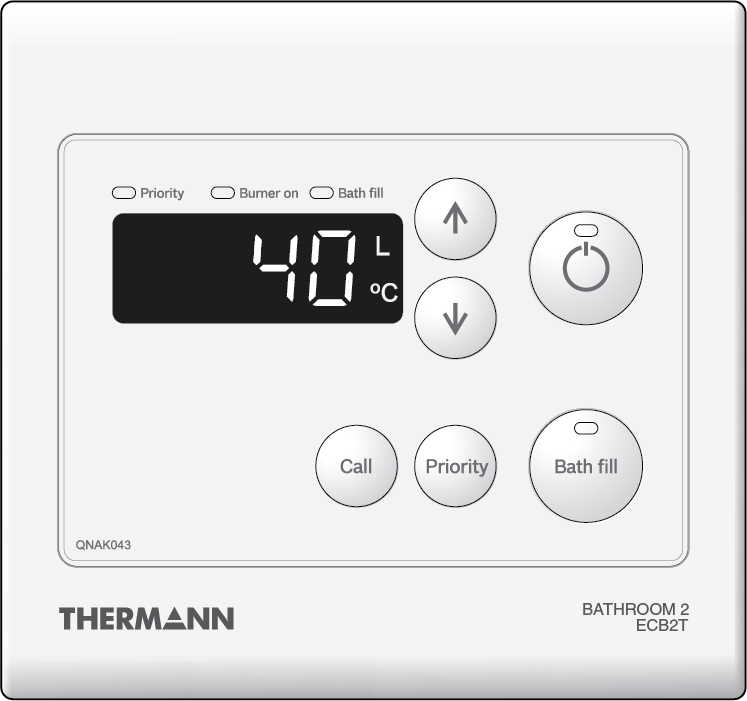

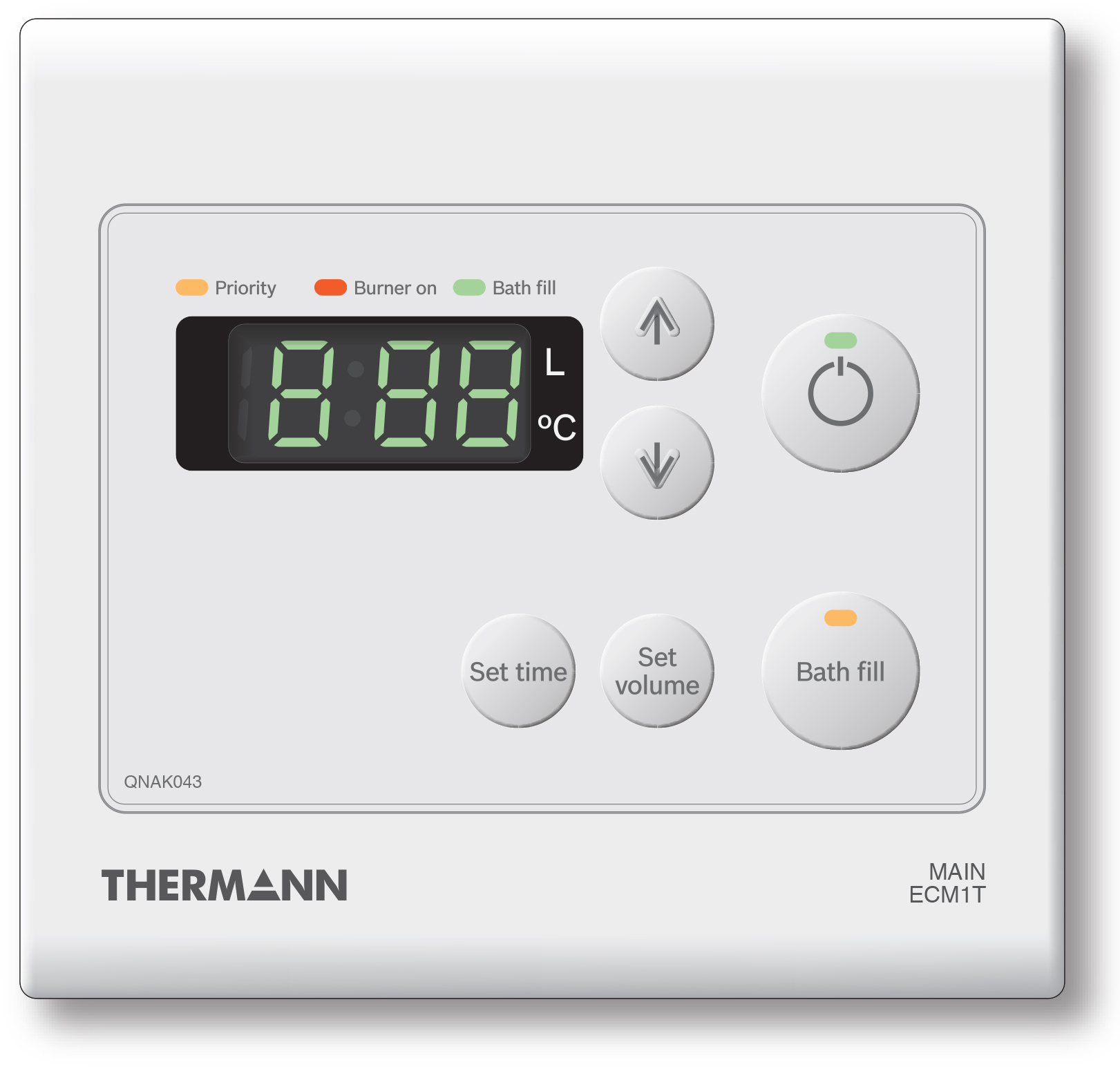

Controllers can be installed to accurately deliver
the required water temperature
You may need to upgrade your gas line which can
add to your upfront costs
A small amount of water (approx 1 to 2 litres) is
wasted in the initial delivery
No mains pressure
Takes longer to deliver hot water than a storage
heater
Save space with a small footprint mounted on your
wall
They heat water as you need it, so you will never run
out of hot water
Controllers can be installed to accurately deliver the
required water temperature
You may need to upgrade your gas line which can add to
your upfront costs
A small amount of water (approx 1 to 2 litres) is
wasted in the initial delivery
No mains pressure
Takes longer to deliver hot water than a storage
heater
Always use a licensed plumber when installing a hot water system.
Gas · Continuous Flow Hot Water Systems
The Thermann R-Series Continuous Flow hot water system is the largest unit in the Thermann domestic continuous flow family. With a larger heat exchanger and high flow rate capacity, the Thermann 32R is perfect for larger homes and homes with a high demand for hot water. The 32R allows up to three showers to run at once.
1. A hot water tap is turned on
2. Water enters the heater
3. The water flow sensor detects the water
flow
4. The computer automatically ignites the
burner
5. Water circulates through the heat
exchanger
6. The heat exchanger heats the water to the
designated temperature
7. When the tap is turned off, the unit shuts
down

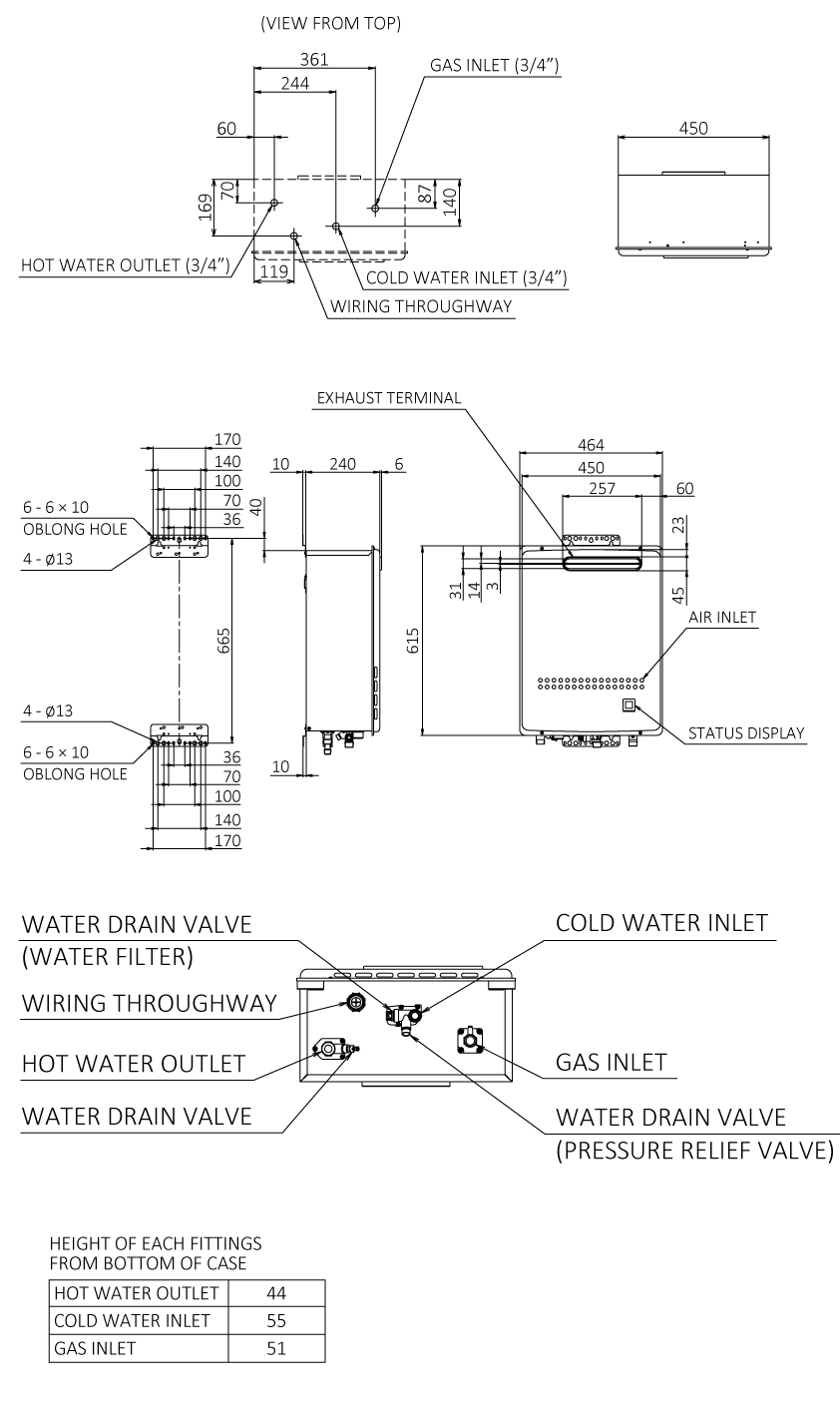

| Dimensions(mm) | 32L |
|---|---|
| Width | 464 |
| Depth | 240 |
| Height - Unit | 615 |
| Height - Including Brackets | 665 |
| Hot Water Outlet (From Back) | 169 |
| Cold Water Inlet (From Back) | 140 |
| Gas Connection (From Back) | 87 |
| Gas Connection Length (From Base) | 55 |
| Cold Connection Length (From Base) | 55 |
| Hot Connection Length (From Base) | 55 |
| Drain Outlet (From Back) | 140 |
| Hot Water Outlet (From Left Hand Edge) | 60 |
| Drain & Cold Water Outlet (From Left Hand Edge) | 244 |
| Gas Connection (From Left Hand Edge) | 361 |
| Specification | Natural | LPG |
|---|---|---|
| Min. Operating Flow Rate (L/min) | 2.0 | 2.0 |
| Gas Consumption (MJ/h) | 250 | 250 |
| Star Rating | 5.8 | 5.8 |
| Gas Type | Natural Gas | Liquefied petroleum gas |
| Weight (kg) | 30 | 30 |
| Max Water Supply Pressure (kPa) | 1000 | 1000 |
| Min Water Supply Pressure (kPa) | 200 | 200 |
| Cold Water Connection (mm) | 20mm 3/4" | 20mm 3/4" |
| Hot Water Connection (mm) | 20mm 3/4" | 20mm 3/4" |
| Gas Connection (mm) | 20mm 3/4" | 20mm 3/4" |
| Min. Operating Flow Rate (L/min) | 2.0 | 2.0 |
| Product code | Number of People | Delivery Capacity (At 25 Deg C Rise) | Gas Type | Temperature Setting | Gas Consumption |
|---|---|---|---|---|---|
| 9509750 | 3-6 | 32L/min | Natural | Locked 50⁰C | 250 MJ/h |
| 9509751 | 3-6 | 32L/min | Natural | Max 75⁰C | 250 MJ/h |
| 9509752 | 3-6 | 32L/min | LPG | Locked 50⁰C | 250 MJ/h |
| 9509753 | 3-6 | 32L/min | LPG | Max 75⁰C | 250 MJ/h |
